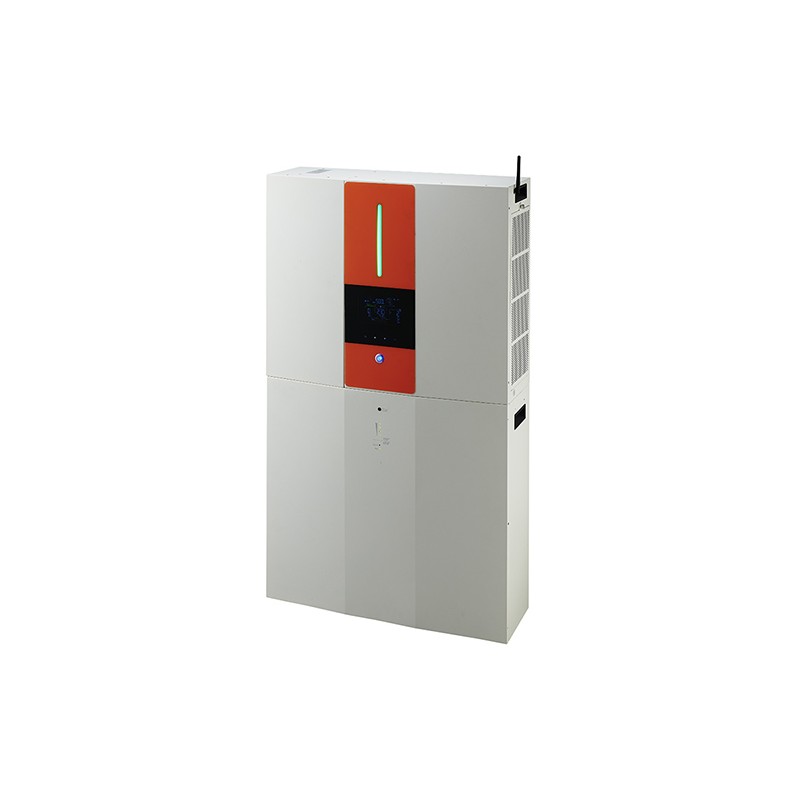

Voltronic ESS All-in-one battery low voltage 8kW 5.12 kWh · 8 kW

Name: Voltronic ESS All-in-one battery low voltage 8kW 5.12 kWh · 8 kW
Brand: Voltronic
SKU: ESS810-8KW

8 kW with a 150 A charger and a wide 90 to 450 V solar window, for a house running air conditioning or a pump alongside the usual load.

النوعبطاريةالبطاريةجهد منخفضالكيمياءLiFePO4النظام51.2 V

القدرة

السعر—

أهم المواصفات

كل المواصفات19

Battery class	Low voltage
Capacity (Ah)	100
Cell chemistry	LiFePO4
Device class	all-in-one ESS
Energy (kWh)	5.12
Nominal voltage (V)	51.2
Rated power (kW)	5
Full charge voltage (V)	56
Full discharge voltage (V)	42
Inner resistance mohm	20
Max charge current (A)	50
Max continuous discharge current (A)	150
Max discharge current (A)	192
Module capacity (kWh)	5.12
Module count	1
Module dimension (mm)	621 x 210 x 551
Protection features	BMS, Breaker
Safety standard	IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Standard charge method	0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C

Battery class	Low voltage
Capacity (Ah)	100
Cell chemistry	LiFePO4
Device class	all-in-one ESS
Energy (kWh)	5.12
Nominal voltage (V)	51.2
Rated power (kW)	5.5
Full charge voltage (V)	56
Full discharge voltage (V)	42
Inner resistance mohm	20
Max charge current (A)	50
Max continuous discharge current (A)	150
Max discharge current (A)	192
Module capacity (kWh)	5
Module count	1
Module dimension (mm)	621 x 214 x 550
Protection features	BMS, Breaker
Safety standard	IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Standard charge method	0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C

Battery class	Low voltage
Capacity (Ah)	100
Cell chemistry	LiFePO4
Device class	all-in-one ESS
Energy (kWh)	5.12
Nominal voltage (V)	51.2
Rated power (kW)	6.5
Dimension (mm)	660 x 500 x 1250
Full charge voltage (V)	56
Full discharge voltage (V)	42
Inner resistance mohm	20
Max charge current (A)	50
Max continuous discharge current (A)	120
Max discharge current (A)	192
Module capacity (kWh)	5.12
Module count	1
Module dimension (mm)	621 x 210 x 551
Package dimension (mm)	660 x 500 x 1250
Package weight (kg)	130
Protection features	BMS, Breaker
Safety standard	IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Standard charge method	0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C
Weight (kg)	130

Battery class	Low voltage
Capacity (Ah)	100
Cell chemistry	LiFePO4
Device class	all-in-one ESS
Energy (kWh)	5.12
Nominal voltage (V)	51.2
Rated power (kW)	8
Full charge voltage (V)	56
Full discharge voltage (V)	42
Inner resistance mohm	20
Max charge current (A)	50
Max continuous discharge current (A)	150
Max discharge current (A)	192
Module capacity (kWh)	5
Module count	1
Module dimension (mm)	621 x 214 x 550
Protection features	BMS, Breaker
Safety standard	IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Standard charge method	0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C
