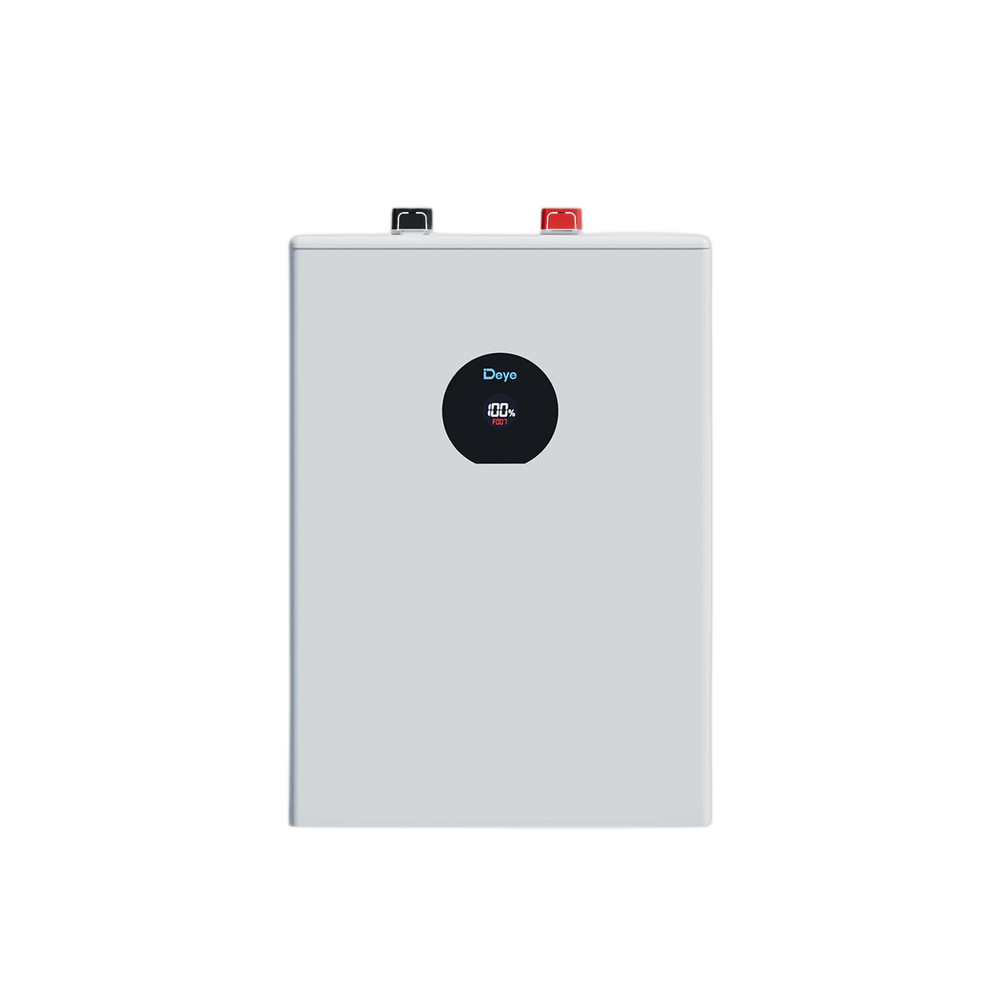

Deye Battery low voltage wall/ground/stack 12.03 kWh

Name: Deye Battery low voltage wall/ground/stack 12.03 kWh
Brand: Deye
SKU: SE-F12

TypeBatteryBatteryLow voltageChemistryLiFePO4Mountingwall/ground/stackSystem51.2 V

Capacity

Price—

Key specifications

All specifications32

Battery class	Low voltage
Capacity (Ah)	100
Cell chemistry	LiFePO4
Energy (kWh)	5.12
Installation	wall, ground, stack
Nominal voltage (V)	51.2
System max energy (kWh)	163.84
Usable energy (kWh)	4.1
Altitude (m)	3000
Certification	UN38.3, CE, CB
Charge temperature (°C)	0-55
Communication port	CAN2.0, RS485, Bluetooth, APP
Cycle life	6000
Dimension (mm)	370 x 140 x 548
Discharge temperature (°C)	-20 to 55
Eol (%)	70
Humidity (%)	0-95
IP rating enclosure	IP21
Max charge current (A)	100
Max discharge current (A)	120
Min battery module qty	1
Operating voltage (V)	44.8-57.6
Parallel units	32
Peak discharge current (A)	150
Peak discharge duration (s)	10
Rated DC power (kW)	1.5
Recommend charge discharge current (A)	30
Recommend depth of discharge (%)	80
Storage temperature (°C)	0-35
Warranty (years)	5
Weight (kg)	41

Battery class	Low voltage
Capacity (Ah)	235
Cell chemistry	LiFePO4
Energy (kWh)	12.03
Installation	wall, ground, stack
Nominal voltage (V)	51.2
System max energy (kWh)	384.96
Usable energy (kWh)	10.83
Altitude (m)	3000
Certification	UN38.3, CE, CB
Charge temperature (°C)	0-55
Communication port	CAN2.0, RS485, Bluetooth, APP
Cycle life	6000
Dimension (mm)	400 x 233 x 599
Discharge temperature (°C)	-20 to 55
Eol (%)	70
Humidity (%)	0-95
IP rating enclosure	IP21
Max charge current (A)	230
Max discharge current (A)	230
Min battery module qty	1
Operating voltage (V)	44.8-57.6
Parallel units	32
Peak discharge current (A)	280
Peak discharge duration (s)	10
Rated DC power (kW)	3.5
Recommend charge discharge current (A)	115
Recommend depth of discharge (%)	90
Storage temperature (°C)	0-35
Warranty extended (years)	10
Warranty (years)	5
Weight (kg)	84

Battery class	Low voltage
Capacity (Ah)	314
Cell chemistry	LiFePO4
Energy (kWh)	16
Installation	wall, ground, stack
Nominal voltage (V)	51.2
System max energy (kWh)	512
Usable energy (kWh)	14.4
Altitude (m)	3000
Certification	UN38.3, CE, CB
Charge temperature (°C)	0-55
Communication port	CAN2.0, RS485, Bluetooth, APP
Cycle life	6000
Dimension (mm)	400 x 233 x 708
Discharge temperature (°C)	-20 to 55
Eol (%)	70
Humidity (%)	0-95
IP rating enclosure	IP21
Max charge current (A)	160
Max discharge current (A)	230
Min battery module qty	1
Operating voltage (V)	44.8-57.6
Parallel units	32
Peak discharge current (A)	280
Peak discharge duration (s)	10
Rated DC power (kW)	4.8
Recommend charge discharge current (A)	157
Recommend depth of discharge (%)	90
Storage temperature (°C)	0-35
Warranty extended (years)	10
Warranty (years)	5
Weight (kg)	109
