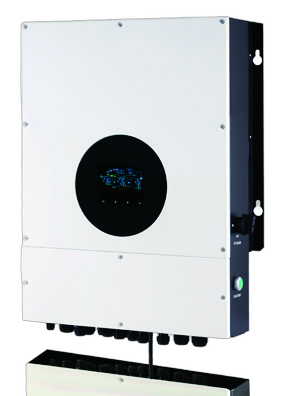

Voltronic InfiniSolar Wp inverter hybrid low voltage single phase 110/220V ac 10 kW · 110 (P-N) / 220 (P-P) V AC

Name: Voltronic InfiniSolar Wp inverter hybrid low voltage single phase 110/220V ac 10 kW · 110 (P-N) / 220 (P-P) V AC
Brand: Voltronic
SKU: INFINISOLAR-WP-LV-10KW

10 kW split-phase with a 200 A charger, for a large American home with a heavy air-conditioning load.

TypeOnduleurRéseauHybridePhaseMonophaséBatterieBasse tension

Capacité

Prix—

Caractéristiques clés

AC output voltage (V)	110 (P-N) / 220 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Phase	Single phase
Rated power (kVA)	6
Rated power (kW)	6
Communication interface	RS232/RS485/WIFI/USB
Dimension (mm)	515 x 215.5 x 700

AC output voltage (V)	110 (P-N) / 220 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Phase	Single phase
Rated power (kVA)	10
Rated power (kW)	10
Communication interface	RS232/RS485/WIFI/USB
Dimension (mm)	515 x 215.5 x 715

Toutes les caractéristiques30

AC output voltage (V)	110 (P-N) / 220 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Phase	Single phase
Rated power (kVA)	6
Rated power (kW)	6
Battery mode efficiency (%)	91
Battery voltage range (V)	42-62
Communication interface	RS232/RS485/WIFI/USB
Dimension (mm)	515 x 215.5 x 700
Grid frequency (Hz)	50/60
Input voltage range (V)	85-140 / 170-280
IP rating	IP65
Max AC charge current (A)	120
Max charge current (A)	120
Max charge power (kW)	6
Max efficiency (%)	96
Max PV input current (A)	15
Max PV input power (kW)	7.5
Max PV voltage (V)	600
Max solar charge current (A)	120
MPPT voltage range (V)	120-550
Operating temperature (°C)	-25 to 60
Parallel units	6
Power factor adjustable range	0.9 leading to 0.9 lagging
Rated AC output current (A)	27.3
Startup voltage (V)	120
Waveform	Pure sine wave
Weight (kg)	41

AC output voltage (V)	110 (P-N) / 220 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Phase	Single phase
Rated power (kVA)	10
Rated power (kW)	10
Battery mode efficiency (%)	91
Battery voltage range (V)	42-62
Communication interface	RS232/RS485/WIFI/USB
Dimension (mm)	515 x 215.5 x 715
Grid frequency (Hz)	50/60
Input voltage range (V)	85-140 / 170-280
IP rating	IP65
Max AC charge current (A)	200
Max charge current (A)	200
Max charge power (kW)	10
Max efficiency (%)	96
Max PV input current (A)	18
Max PV input power (kW)	12
Max PV voltage (V)	600
Max solar charge current (A)	200
MPPT count	2
MPPT voltage range (V)	120-550
Operating temperature (°C)	-25 to 60
Parallel units	6
Power factor adjustable range	0.9 leading to 0.9 lagging
Rated AC output current (A)	41.5
Startup voltage (V)	120
Waveform	Pure sine wave
Weight (kg)	45

AC output voltage (V)	120 (P-N) / 208 (P-P) / 240 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Nominal battery voltage (V)	48
Phase	Single phase
Rated power (kVA)	10
Rated power (kW)	10
Battery mode efficiency (%)	91
Dimension (mm)	515 x 215.5 x 798
Input voltage range (V)	85-140
Max AC charge current (A)	200
Max charge current (A)	200
Max charge power (kW)	10
Max efficiency (%)	96
Max PV input current (A)	18
Max PV input power (kW)	12
Max PV voltage (V)	600
Max solar charge current (A)	200
MPPT voltage range (V)	120-550
Operating temperature (°C)	-25 to 60
Parallel units	6
Power factor adjustable range	0.9 leading to 0.9 lagging
Safety standard	UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
Waveform	Pure sine wave
Weight (kg)	49

AC output voltage (V)	120 (P-N) / 208 (P-P) / 240 (P-P)
Battery class	Low voltage
Grid type	Hybrid
Nominal battery voltage (V)	48
Phase	Single phase
Rated power (kVA)	15
Rated power (kW)	15
Battery mode efficiency (%)	93
Communication interface	RS232/RS485/WIFI/USB/Dry-contact/BMS
Dimension (mm)	575 x 267.5 x 800
Input voltage range (V)	90-140
Max AC charge current (A)	250
Max charge current (A)	250
Max efficiency (%)	93
Max PV input power (kW)	22
Max PV voltage (V)	500
Max solar charge current (A)	250
MPPT count	4
Operating temperature (°C)	-25 to 60
Parallel units	6
Power factor adjustable range	0.9 leading to 0.9 lagging
Rated AC output current (A)	62.5
Safety standard	UL1741SA, UL1741SB
Startup voltage (V)	120
Waveform	Pure sine wave
Weight (kg)	65
