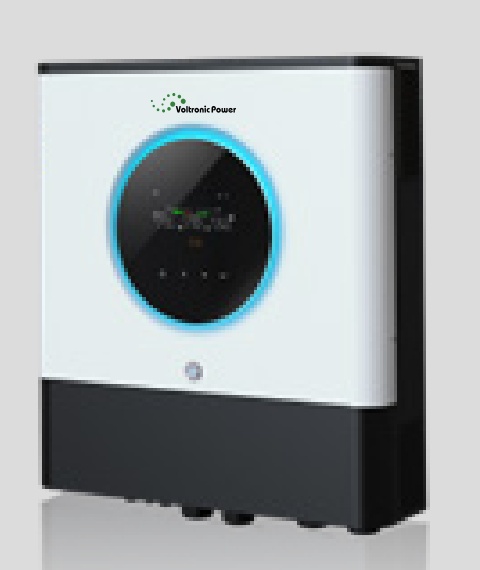

Voltronic Axpert Max ii inverter off-grid low voltage single phase 8 kW

Name: Voltronic Axpert Max ii inverter off-grid low voltage single phase 8 kW
Brand: Voltronic
SKU: AXPERT-MAX-II-80000

8 kW with a 150 A charger, for a large home with a substantial battery bank.

TypeOnduleurRéseauHors réseauPhaseMonophaséBatterieBasse tensionSystème48 V

Capacité

Prix—

Caractéristiques clés

Toutes les caractéristiques32

Battery class	Low voltage
Grid type	Off-grid
Nominal battery voltage (V)	48
Phase	Single phase
Rated power (kVA)	6.5
Rated power (kW)	6.5
AC input voltage (V)	120
AC voltage regulation batt mode	5
Communication interface	USB/RS232/RS485/WIFI/Dry-contact
Dimension (mm)	503.6 x 158.4 x 530.8
Floating charge voltage (V)	54
Grid frequency (Hz)	50/60
High line disconnect (V)	140
High line frequency disconnect (Hz)	65
High line frequency reconnect (Hz)	63
High line reconnect (V)	135
Input voltage range apl (V)	80-140
Input voltage range UPS (V)	90-140
Low line disconnect apl (V)	80
Low line disconnect UPS (V)	90
Low line frequency disconnect (Hz)	40
Low line frequency reconnect (Hz)	42
Low line reconnect apl (V)	90
Low line reconnect UPS (V)	100
Max AC charge current (A)	120
Max AC input current (A)	60
Max AC input voltage (V)	150
Max charge current (A)	120
Max efficiency (%)	91
Max PV input power (kW)	8
Max PV voltage (V)	250
Max solar charge current (A)	120
MPPT voltage range (V)	90-230
Operating temperature (°C)	-10 to 50
Overcharge protection (V)	66
Parallel units	6
Relative humidity (%)	5-95
Safety standard	UL
Solar charger type	MPPT
Storage temperature (°C)	-15 to 60
Surge power (kVA)	13
Transfer time (ms)	15-20
Waveform	Pure sine wave
Weight (kg)	20

Battery class	Low voltage
Grid type	Off-grid
Nominal battery voltage (V)	48
Phase	Single phase
Rated power (kVA)	8
Rated power (kW)	8
AC input voltage (V)	230
AC voltage regulation batt mode	5
Communication interface	USB/RS232/RS485/WIFI/Dry-contact
Floating charge voltage (V)	54
Grid frequency (Hz)	50/60
Input voltage range apl (V)	90-280
Input voltage range UPS (V)	170-280
Max AC charge current (A)	120
Max charge current (A)	150
Max efficiency (%)	93
Max PV input power (kW)	8
Max PV voltage (V)	500
Max solar charge current (A)	150
MPPT voltage range (V)	90-450
Operating temperature (°C)	-10 to 50
Overcharge protection (V)	66
Parallel units	6
Relative humidity (%)	5-95
Safety standard	CE
Solar charger type	MPPT
Standby power (W)	70
Storage temperature (°C)	-15 to 60
Surge power (kVA)	16
Transfer time (ms)	15-20
Waveform	Pure sine wave
Weight (kg)	20

Battery class	Low voltage
Grid type	Off-grid
Nominal battery voltage (V)	48
Phase	Single phase
Rated power (kVA)	11
Rated power (kW)	11
AC input voltage (V)	230
AC voltage regulation batt mode	5
Communication interface	USB/RS232/RS485/WIFI/Dry-contact
Dimension (mm)	503.6 x 158.4 x 530.8
Floating charge voltage (V)	54
Grid frequency (Hz)	50/60
Input voltage range apl (V)	90-280
Input voltage range UPS (V)	170-280
Max AC charge current (A)	150
Max charge current (A)	150
Max efficiency (%)	93
Max PV input power (kW)	11
Max PV voltage (V)	500
Max solar charge current (A)	150
MPPT voltage range (V)	90-450
Operating temperature (°C)	-10 to 50
Overcharge protection (V)	66
Parallel units	6
Relative humidity (%)	5-95
Safety standard	CE
Solar charger type	MPPT
Standby power (W)	75
Storage temperature (°C)	-15 to 60
Surge power (kVA)	22
Transfer time (ms)	15-20
Waveform	Pure sine wave
Weight (kg)	20
