SCC
Voltronic

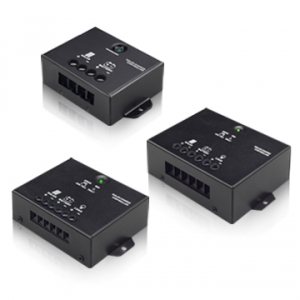

Voltronic SCC Charge controller 1200 W
1200 W of array, the largest PWM step, for a lead-acid bank that would otherwise need a second controller.
TypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controllerTypeCharge controller
Capacity
Price—
Key specifications
| Device class | MPPT |
|---|---|
| Altitude (m) | 0-3000 |
| Dimension (mm) | 165 x 128 x 315 |
| IP rating | IP31 |
| Max charging current (A) | 60 |
| Max current (A) | 50 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.8 or 1.6 or 3.2 |
| Device class | PWM |
|---|---|
| Altitude (m) | 0-3000 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 60.7 x 30.8 x 92.6 |
| IP rating | IP31 |
| Max charging current (A) | 10 |
| Max current (A) | 10 |
| Max PV input power (kW) | 0.12 |
| Device class | PWM |
|---|---|
| Altitude (m) | 0-3000 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 60.7 x 30.8 x 92.6 |
| IP rating | IP31 |
| Max charging current (A) | 10 |
| Max current (A) | 10 |
| Max PV input power (kW) | 0.24 |
| Device class | MPPT |
|---|---|
| Altitude (m) | 0-3000 |
| Dimension (mm) | 170 x 57.5 x 135 |
| IP rating | IP43 |
| Max charging current (A) | 25 |
| Max current (A) | 18 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.3 |
| Device class | PWM |
|---|---|
| Altitude (m) | 0-3000 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 75 x 30.8 x 107.6 |
| IP rating | IP31 |
| Max charging current (A) | 30 |
| Max current (A) | 30 |
| Max PV input power (kW) | 0.36 |
| Device class | MPPT |
|---|---|
| Altitude (m) | 0-3000 |
| Dimension (mm) | 170 x 57.5 x 220 |
| IP rating | IP43 |
| Max charging current (A) | 25 |
| Max current (A) | 18 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.3 or 0.6 |
| Device class | PWM |
|---|---|
| Altitude (m) | 0-3000 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 75 x 30.8 x 107.6 |
| IP rating | IP31 |
| Max charging current (A) | 30 |
| Max current (A) | 30 |
| Max PV input power (kW) | 0.72 |
| Device class | MPPT |
|---|---|
| Altitude (m) | 0-3000 |
| Dimension (mm) | 170 x 57.5 x 220 |
| IP rating | IP43 |
| Max charging current (A) | 20 |
| Max current (A) | 17 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.85 |
| Device class | PWM |
|---|---|
| Altitude (m) | 0-3000 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 85 x 40.5 x 131 |
| IP rating | IP31 |
| Max charging current (A) | 50 |
| Max current (A) | 50 |
| Max PV input power (kW) | 1.2 |
All specifications191717191719171917
| Device class | MPPT |
|---|---|
| Nominal battery voltage (V) | 12 or 24 or 48 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, absorption, and floating |
| Dimension (mm) | 165 x 128 x 315 |
| IP rating | IP31 |
| LED display | Three indicators for solar, charging, and load status |
| Max charging current (A) | 60 |
| Max current (A) | 50 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.8 or 1.6 or 3.2 |
| Max PV open circuit voltage (V) | 145 |
| Operating temperature (°C) | 0 to 55 |
| Overcharge protection | Yes |
| Overload protection | > 110% audible alarm |
| Package dimension (mm) | 165 x 128 x 315 |
| Package weight (kg) | 4.5 |
| Storage temperature (°C) | -15 to 60 |
| Weight (kg) | 4.5 |
| Device class | PWM |
|---|---|
| Nominal battery voltage (V) | 12 |
| Altitude (m) | 0-3000 |
| Charging method | Two stages: bulk and floating 1/ floating 2 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 60.7 x 30.8 x 92.6 |
| IP rating | IP31 |
| LED display | Green LED indicating charging status |
| Max charging current (A) | 10 |
| Max current (A) | 10 |
| Max PV input power (kW) | 0.12 |
| Max PV open circuit voltage (V) | 25 |
| Operating temperature (°C) | -20 to 55 |
| Package dimension (mm) | 60.7 x 30.8 x 92.6 |
| Package weight (kg) | 0.21 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.21 |
| Device class | PWM |
|---|---|
| Nominal battery voltage (V) | 24 |
| Altitude (m) | 0-3000 |
| Charging method | Two stages: bulk and floating 1/ floating 2 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 60.7 x 30.8 x 92.6 |
| IP rating | IP31 |
| LED display | Green LED indicating charging status |
| Max charging current (A) | 10 |
| Max current (A) | 10 |
| Max PV input power (kW) | 0.24 |
| Max PV open circuit voltage (V) | 50 |
| Operating temperature (°C) | -20 to 55 |
| Package dimension (mm) | 60.7 x 30.8 x 92.6 |
| Package weight (kg) | 0.21 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.21 |
| Device class | MPPT |
|---|---|
| Nominal battery voltage (V) | 12 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, absorption, and floating |
| Dimension (mm) | 170 x 57.5 x 135 |
| IP rating | IP43 |
| LED display | Three indicators for solar, charging, and load status |
| Max charging current (A) | 25 |
| Max current (A) | 18 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.3 |
| Max PV open circuit voltage (V) | 50 |
| Operating temperature (°C) | -20 to 55 |
| Overcharge protection | Yes |
| Overload protection | > 110% audible alarm |
| Package dimension (mm) | 170 x 57.5 x 135 |
| Package weight (kg) | 0.92 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.92 |
| Device class | PWM |
|---|---|
| Nominal battery voltage (V) | 12 |
| Altitude (m) | 0-3000 |
| Charging method | Two stages: bulk and floating 1/ floating 2 |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 75 x 30.8 x 107.6 |
| IP rating | IP31 |
| LED display | Green LED indicating charging status |
| Max charging current (A) | 30 |
| Max current (A) | 30 |
| Max PV input power (kW) | 0.36 |
| Max PV open circuit voltage (V) | 75 |
| Operating temperature (°C) | -20 to 55 |
| Package dimension (mm) | 75 x 30.8 x 107.6 |
| Package weight (kg) | 0.34 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.34 |
| Device class | MPPT |
|---|---|
| Nominal battery voltage (V) | 12 or 24 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, absorption, and floating |
| Dimension (mm) | 170 x 57.5 x 220 |
| IP rating | IP43 |
| LED display | Three indicators for solar, charging, and load status |
| Max charging current (A) | 25 |
| Max current (A) | 18 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.3 or 0.6 |
| Max PV open circuit voltage (V) | 50 or 75 |
| Operating temperature (°C) | -20 to 55 |
| Overcharge protection | Yes |
| Overload protection | > 110% audible alarm |
| Package dimension (mm) | 170 x 57.5 x 220 |
| Package weight (kg) | 1.85 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 1.85 |
| Device class | PWM |
|---|---|
| Nominal battery voltage (V) | 24 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, abs cv, floating |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 75 x 30.8 x 107.6 |
| IP rating | IP31 |
| LED display | Green LED indicating charging status |
| Max charging current (A) | 30 |
| Max current (A) | 30 |
| Max PV input power (kW) | 0.72 |
| Max PV open circuit voltage (V) | 75 |
| Operating temperature (°C) | -20 to 55 |
| Package dimension (mm) | 75 x 30.8 x 107.6 |
| Package weight (kg) | 0.34 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.34 |
| Device class | MPPT |
|---|---|
| Nominal battery voltage (V) | 36 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, absorption, and floating |
| Dimension (mm) | 170 x 57.5 x 220 |
| IP rating | IP43 |
| LED display | Three indicators for solar, charging, and load status |
| Max charging current (A) | 20 |
| Max current (A) | 17 |
| Max efficiency (%) | 98 |
| Max PV input power (kW) | 0.85 |
| Max PV open circuit voltage (V) | 98 |
| Operating temperature (°C) | -20 to 55 |
| Overcharge protection | Yes |
| Overload protection | > 110% audible alarm |
| Package dimension (mm) | 170 x 57.5 x 220 |
| Package weight (kg) | 1.85 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 1.85 |
| Device class | PWM |
|---|---|
| Nominal battery voltage (V) | 24 |
| Altitude (m) | 0-3000 |
| Charging method | Three stages: bulk, abs cv, floating |
| Connected battery type | Sealed lead acid battery |
| Dimension (mm) | 85 x 40.5 x 131 |
| IP rating | IP31 |
| LED display | Green LED indicating charging status |
| Max charging current (A) | 50 |
| Max current (A) | 50 |
| Max PV input power (kW) | 1.2 |
| Max PV open circuit voltage (V) | 75 |
| Operating temperature (°C) | -20 to 55 |
| Package dimension (mm) | 85 x 40.5 x 131 |
| Package weight (kg) | 0.49 |
| Storage temperature (°C) | -40 to 75 |
| Weight (kg) | 0.49 |
