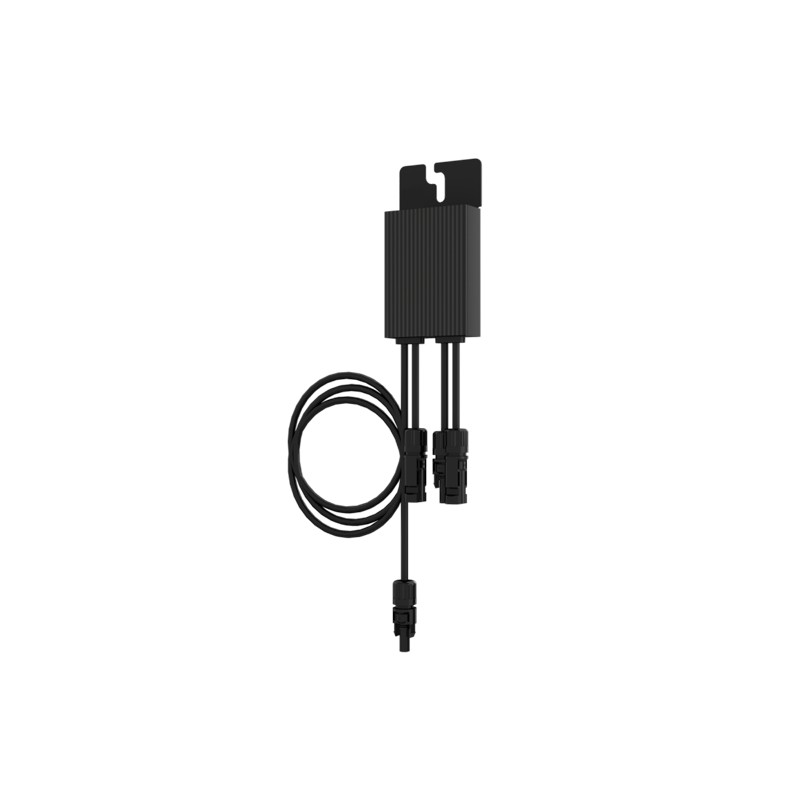

Huawei SMART PV OPTIMIZER Accessory 600 W module controller (M10/G12 panels)

Huawei SMART PV OPTIMIZER Accessory 600 W module controller (M10/G12 panels)

TypeAccessory Variant450 W optimizer (14.5 A)600 W module controller (M10/G12 panels)600 W optimizer (15 A)
Price—

Coming in 4 weeks

Description

Suits the large-format M10 and G12 panels common on new installations, up to 600 W.

Key specifications

Device classPV optimizer
Cec efficiency (%)99.0
Communication interfaceMBUS
ConnectorStaubli MC4
DC output voltage (V)80
Dimension (mm)73.8 x 27.2 x 145
IP ratingIP68
Max efficiency (%)99.5
All specifications17

AC

Max output current (A)16

PV and DC

DC output voltage (V)80
Max PV input power (kW)0.6
Max PV input voltage (V)80
MPPT voltage range (V)10-80

Protection

IP ratingIP68
Max short circuit current (A)16

Communication

Communication interfaceMBUS

General

Device classPV optimizer
Cec efficiency (%)99.0
ConnectorStaubli MC4
Dimension (mm)73.8 x 27.2 x 145
Max efficiency (%)99.5
Operating temp (°C)-40 to 85
Package dimension (mm)73.8 x 27.2 x 145
Package weight (kg)0.65
Weight (kg)0.65
